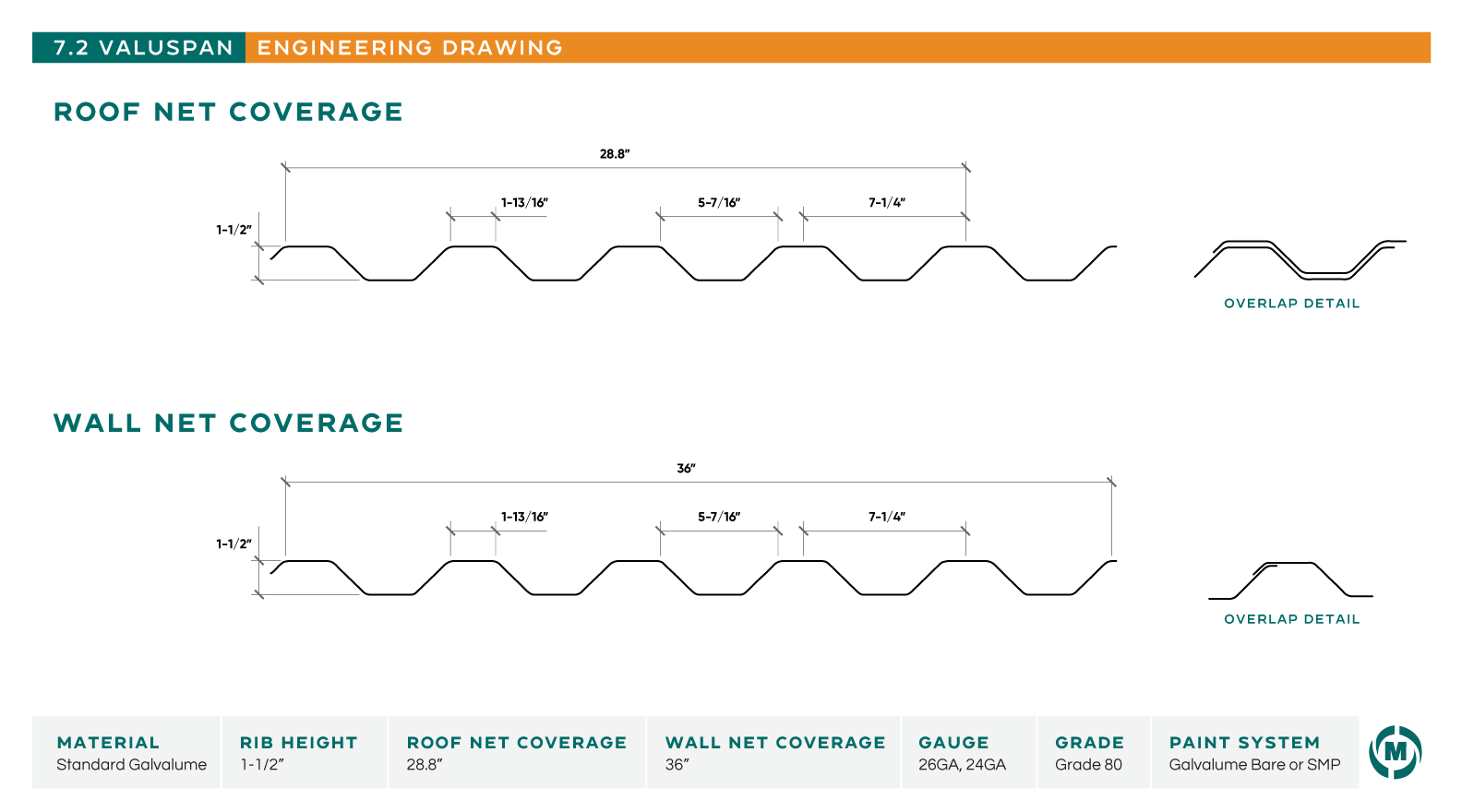

Engineering Drawing
The 7.2 ValuSpan Panel is a cost-effective solution for residential and light commercial projects, featuring a shallower profile and shorter span capability. Designed for versatility, it offers 28.8" net coverage for roof applications and 36" net coverage for walls.
How To Order
Why Choose 7.2 ValuSpan
All the performance of 7.2 LongSpan, with added versatility—designed for efficient use on both roof and wall applications, reducing panel count and labor.
Panel Overview
Coverage & Profile
Rib To Rib Distance: 7.2"
Rib Height: 1-1/2’’
Panel Length: 1' to 51'
Net Coverage : 28.8" (Roof Only) 36” (Wall Only)
Slope: 1:12 Minimum Roof Slope
Material & Finish
Material Type: Standard Galvalume (Zincalume) or Galvanized available for special orders
Available Gauges: 26 Standard and 24 available for special orders
Fasteners: Exposed Fasteners
Finish: Standard Galvulame Bare or SMP available for special orders
Trim/Flashing: Standard Metroll universal trim/flashing & custom available for special orders in bare and color

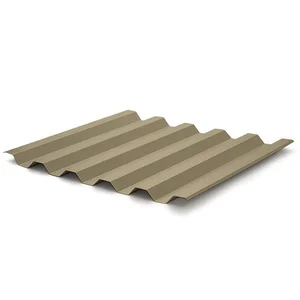

Finish & Color
Installation Quick Start

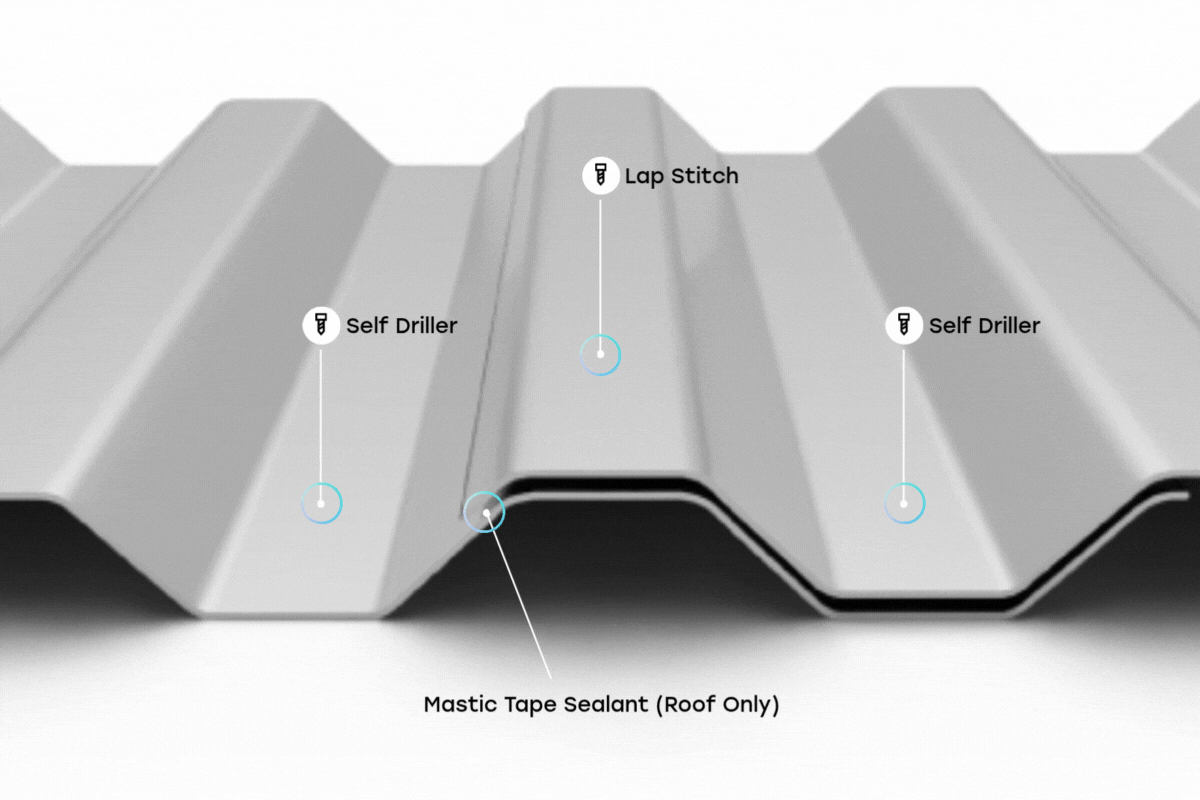

Attachment Detail
1. Refer to trim connection details to determine order of trim and panel placement.
2. Align the edge of the first sheet along the edge of the roof. The panel should hang over a maximum of 2” at the eave and should not extend past the center of the ridge space.
3. After the first panel is properly placed, use the recommended screws to secure the panel.
4. Lay down the next two panels and then check the alignment at the eave and ridge to ensure the panels are square.

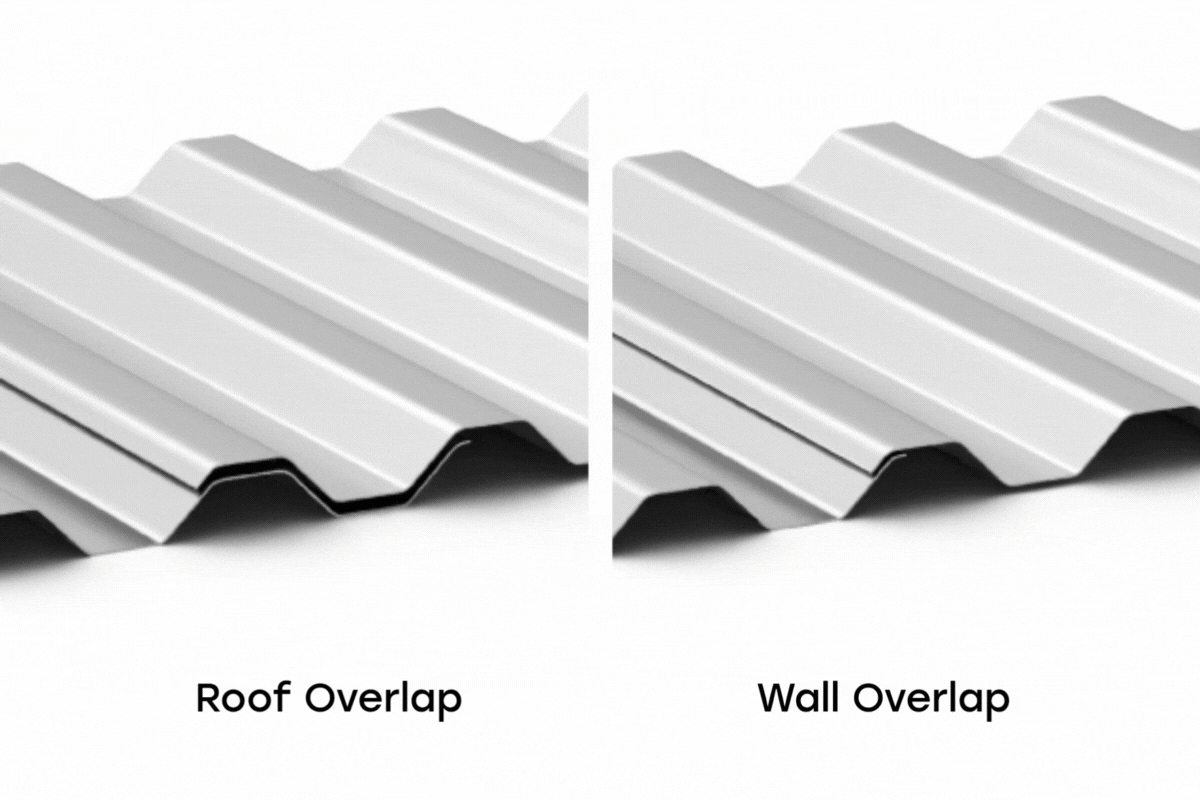

Roof Vs Wall Net Coverage
Roof - When used for roofing, the 7.2 ValuSpan panel provides a 28.8" Net Coverage, allowing for proper side lap to ensure weather-tightness and structural integrity in sloped applications.
Wall - For wall applications, 7.2 ValuSpan panel offers a 36" Net Coverage, utilizing a different overlap that maximizes coverage area while maintaining performance and ease of installation.
